Create Custom Column

A new column must be added to the left of the current set of columns

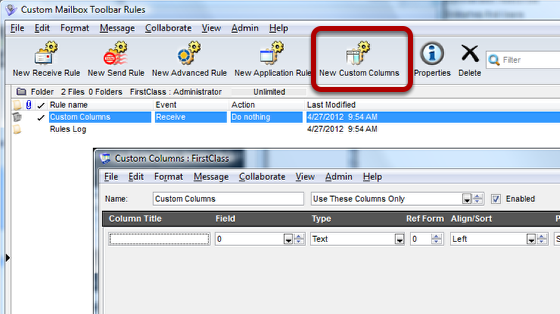

New Custom Column Template

With the resources folder open, click on the New Custom Columns button to create a new Custom Column form.

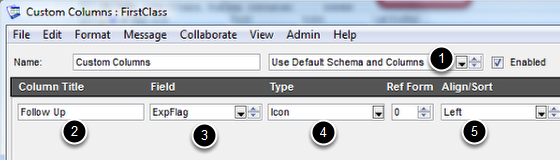

Set the Custom Column Properties - Part 1

  1. Choose Use Default Schema and Columns
  2. Column Title: Follow Up
  3. Field: Choose ExpFlag
  4. Type: Choose Icon
  5. Align/Sort: Choose Left

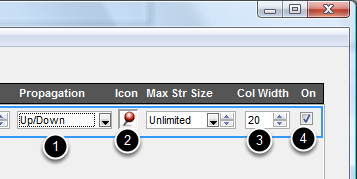

Set the Custom Columns Properties - Part 2

  1. Propagation: Choose Up/Down
  2. Icon: See next step
  3. Col Width: Set at 20
  4. On: Check

Pick Icon

To select the icon, hold down the <Control> Key (<Option> key on a Mac) while clicking on the icon field and select the red "Pin" icon
Close and Save the form
